Quick Details

  • Light Source: LED
  • Item Type: Tube Lights
  • LED Light Source: SMD3528
  • Warranty(Years): 3
  • Input Voltage(V): 85-230V
  • Lamp Power(W): 18
  • Lamp Luminous Flux(lm): 1700
  • Lamp Luminous Efficiency(lm/w): 90
  • CRI (Ra>): 80
  • Color Temperature(CCT): Warm White
  • Working Temperature(℃): -25 - 65
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP55
  • Certification: CE, C-tick, EMC, ETL, LVD, RoHS, SAA, UL, VDE
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Feels compatible t8 led lamp
  • Model Number: T8
  • Product name: compatible t8 led tube light
  • LED T8 Light source: SMD3528
  • T8 LED Light decay: 3% after 3000hrs
  • LED T8 Body materials: Extruded Aluminum+PC Cover
  • T8 Cover: Clear,Milky,Strip
  • T8 LED Level: Super bright
  • T8 LED Tube feather: Directly Replacement & No Wiring Changes
  • Other name: compatible LED T8 Lamp
  • Similar Lights: smd compatible LED G24 G23
  • Advantage: good internal heat dissipation design

Packaging & Delivery

Packaging Details: 30pcs compatible t8 led tube/carton for 1200mm,carton size:22*26*126CM(30PCS/carton/20KG
60pcs/carton for 600mm,carton size:22*26*126CM(60PCS/carton/21KG)
Delivery Detail: 10-12 days for bulk order after payment

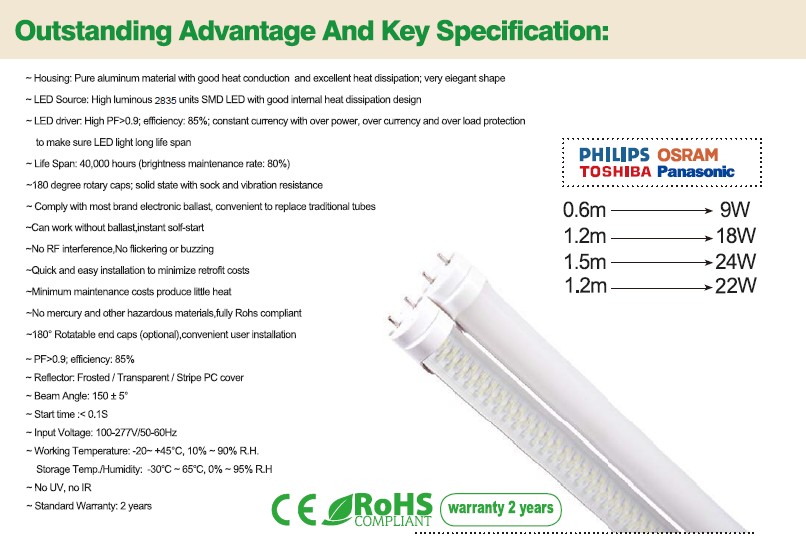

Specifications

compatible t8 led lamp
Lengh:600mm (2 feet)/1200mm (4 feet)/1500mm (5 feet)
Super bright 3528SMD/W
Powerout:9W/18W/24

compatible t8 led lamp
1.Comply with both magnetic and electronic ballast, easy installation to replace traditional tubes
2.Many safe wiring connection options
3.Truly Long life span 40000 hours

Item NO.TypePowerLED QuantityLuminous FluxDimensionColor Temperature Range
3528T8-60CM-8WT89W120 PCS600-700LMDia26*600mm3000K-7000K
3528T8-60CM-10WT810W144 PCS750-850LMDia 26*600mm
3528T8-90CM-14WT814W180 PCS900-1000LMDia 26*900mm
3528T8-120CM-15WT815W240 PCS1350-1450LMDia26*1200mm
3528T8-120CM-17WT817W276 PCS1550-1650LMDia26*1200mm
3528T8-120CM-18WT818W288 PCS1650-1750LMDia26*1200mm
3528T8-150CM-20WT822W360 PCS1850-2150 LMDia26*1500mm
3528T8-180CM-25WT825W432 PCS2250-2550LMDia26*1800mm
3528T8-240CM-25WT835W576 PCS3000-3400LMDia26*2400mm
Input Voltage: AC85-265V
Operating Frequency: 50/60Hz
Power Factor:≥0.9
LED Chip Type: Epistar(Taiwan)
Color-rendering Index:≥75 Ra
Harmonic(HD):≤20%
Housing: PC tube, Aluminum alloy
Frame: SMD 3528
Humidity: 95%
Lifetime:≥50000 H



Compatible SMD 3528 T8 LED Tube Light

LED TUBES Features:
1, High brightness, using super bright 3528 SMD LED.
2, Energy saving, driven by high efficiency constant current than traditional energy-saving fluorescent 80%.
3, Low energy consumpiton, can reach 50000 hours.
4, Strong weather ability, not sensitive to temperature, moisture to the wider.
5, It's simple-designed and easy to use.
6, Environmental protection, not heavy metals and harmfrl gas.
7, No glimmered, protedtion to your eyes.



 compatible t8 led tube Dimension


External Structure

A. PC cover
B. PCB
C. Silicone thermal pad
D. D shaped Aluminous housing
E. PC cover of power supply
F. Built-in driver

Installation diagram


Compatible LED Tube Light Distribution Curve & Cut Out View
